G96 Precast Gels

G96 Precast Gels for polyacrylamide gel electrophoresis (PAGE) let you analyze 96 samples in about the same amount of time as standard gels.

G96 precast gel for high throughput western blotting

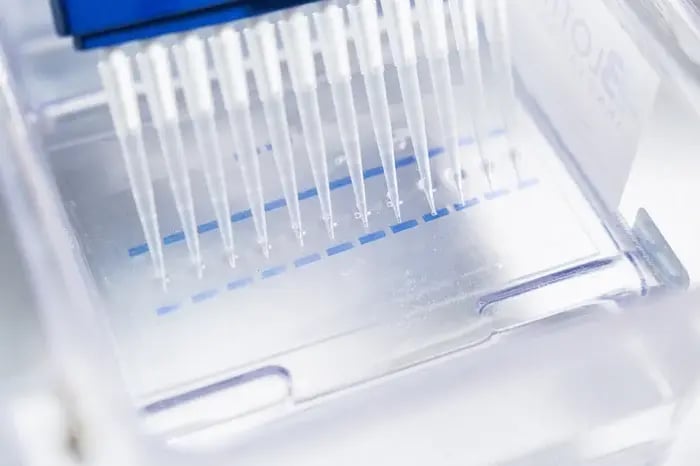

Multi-channel pipette loading of G96 precast gel in HT-1 tank
Membrane scan of visible spectrum molecular weight ladder after separation in G96
Membrane scan of recombinant alpha-tubulin after chemiluminescent antibody incubation and separation in G96
Comparison of Traditional Western Blot to G96 Results
Molecular weight range for 6% acrylamide G96
Molecular weight range for 10% acrylamide G96

Product Details

  • With 96 wells, this gel is perfect for large scale protein analysis and will reduce the number of experiments you need to run

  • Loadable by single-channel and multi-channel pipettes

  • Tris-HCl gel chemistry: compatible with Tris-HCl running buffer and Tris-Glycine transfer buffer

  • Simply load samples into the wells and run electrophoresis

  • Perform electrophoresis on up to 96 samples in an hour (for 10% acrylamide gels)

  • Wet transfer is recommended

Specifications

  • 128 mm * 82 mm length and width

  • 10% acrylamide gels: suitable for proteins between 25 and 100 kDa

  • 6% acrylamide gels: suitable for proteins between 50 and 250 kDa

  • Number of wells: 96

  • Well volume: 56 µL

  • Recommended sample volume: 10-25 µL

  • Shelf life when stored at 4 °C: guaranteed 3 months

Documentation

G96 Safety Data Sheet (SDS)

G-Blot User Manual

Related Items

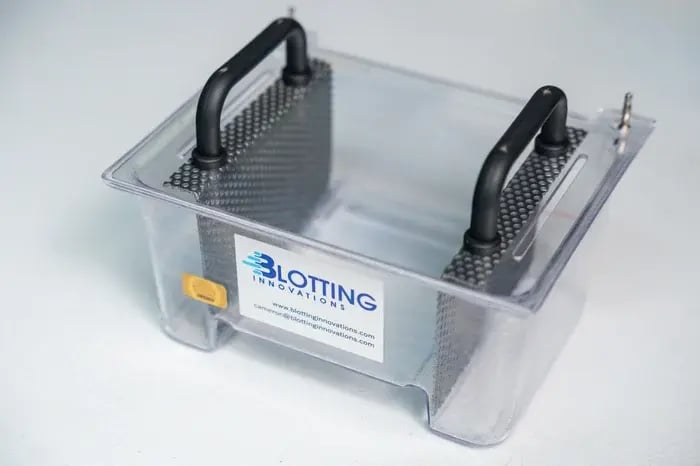

HT-1 Horizontal Tank
